XXK050333-AIR

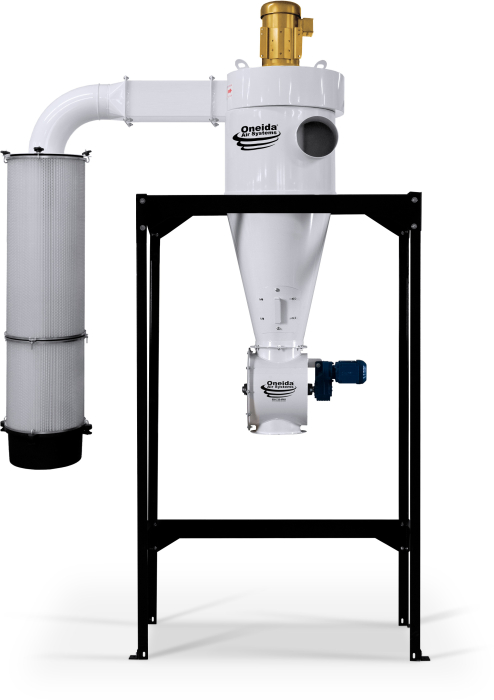

5hp 3ph High Vacuum Freestanding MERV-13 Cyclone Dust Collector w/ Air Lock
$8,449.00
High static air pressure system for CNC, sanding, and other fine dust applications. Complete system includes modular stacking filter system with efficiency gauge to alert the operator for cleaning. Full-welded, steel cyclone separator captures and removes fine dust and bulk debris from the airstream to provide continuously high suction power, reducing filter maintenance downtime, and continuously feeding waste into a customer supplied container of your choice via a Rotary Air Lock Valve.
Products Recommended For You
Check items to add to the cart or
| Horsepower | 5 hp |
|---|---|
| Motor Type | U.S. TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 208-230V |
| Recommended Breaker Size | 30A |
| Amperage (Typical) | 12-11.8A |
| Phase Option | Three-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type | 4 Bare Wires |
| Power Cord Length | 10 feet |
| Impeller Type | Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy. |
| Impeller Size | 16-1/2" Dia. |
| Real CFM Rating | 2,150 Actual CFM at 2" S.P. |
| Free Fan CFM Rating | 3,225 CFM |
| Maximum Suction | 16" WC |
| Noise Level | 75-81 dBA @ 10 ft |
| Cyclonic Separation Efficiency | Removes over 99% of fine wood dusts |
| Filter Type | Izumi Axtar Spunbond Media |
| Filtration Efficiency | 99.9% @ 0.2-2.0 microns |
| Total Filtration Area | 155 sq ft |
| Waste Capacity | Customizable |
| Remote Control | Sold Separately |
| Remote Control Part # | Item #AKR220003 |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | 8" Dia. |
| Outlet Size | Square ID: 10-1/32" (W) x 7-41/64" (H) with 1-1/4" Flange |
| Discharge Size | 10" Flange: 10-1/4" ID | 13" OD | 11-3/4" BCD |
| Width | 64-5/8" (Stand Only) 94" (with Filter) |
| Depth | 32-1/2" (Stand Only) 36-1/4" (with Filter) |
| Height | Position 1: 123-11/16" Position 2: 133-11/16" Position 3: 147-11/16" |
| Height to Center of Inlet | Position 1: 94-3/8" Position 2: 104-3/8" Position 3: 118-3/8" |
| Contents | Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Filter Plenum, 2x Modular Cartridge Filters, Internal Silencer, Filter Efficiency Gauge, Angle Iron Stand, Pants Wye Splitter, 2x Steel Dust Bins, Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards. |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
