15hp Direct Drive Industrial MERV-13 Cyclone Dust Collector
Industrial dust collection system for large commercial shops - suitable for collecting from multiple 4"-6" dust ports simultaneously. Features fully seam welded, heavy-gauge steel cyclone separator with powder coat finish - captures and removes both fine dusts and bulk debris from the airstream to provide continuously high suction power and reducer filter maintenance downtime. Custom choice of motor voltage (230 / 460 / 600V) and waste disposal (110 gallon, Air Lock Valve, etc.). Air can be exhausted outside or through a hanging or freestanding filter plenum assembly (sold separately).
Realize the Power of American Manufacturing
Our 15HP Direct Drive system provides powerful airflow within a compact, quiet, and cost-effective package. With its high-efficiency cyclone separator you can expect continuously high suction performance and minimal filter maintenance.
Made in the USA with long lasting heavy-gauge steel components, our 15HP is ideal for fixed ductwork where multiple tools are in use simultaneously. With it's typical operating range delivering 3"-11" of static pressure (see fan curve) this system is particularly suited for CNC equipment requiring multiple open ports as well as other high pressure applications.
Included Features & Components
- Industrial 15HP U.S. Made Motor
- Integral Fan Blower with Carbon Steel Impeller
- High-Efficiency 230V (or 460V) 3-Phase Power
- Magnetic Starter w/ Overload Protector
- Heavy-Gauge Solid Welded Steel Cyclone Separator
- Robust Angle Iron Frame Stand
- Choice of Dual 110-Gallon Dust Bins or Rotary Air Lock Valve
- 2 Year Limited Warranty
- cETLus Certified and NFPA Compliance Ready

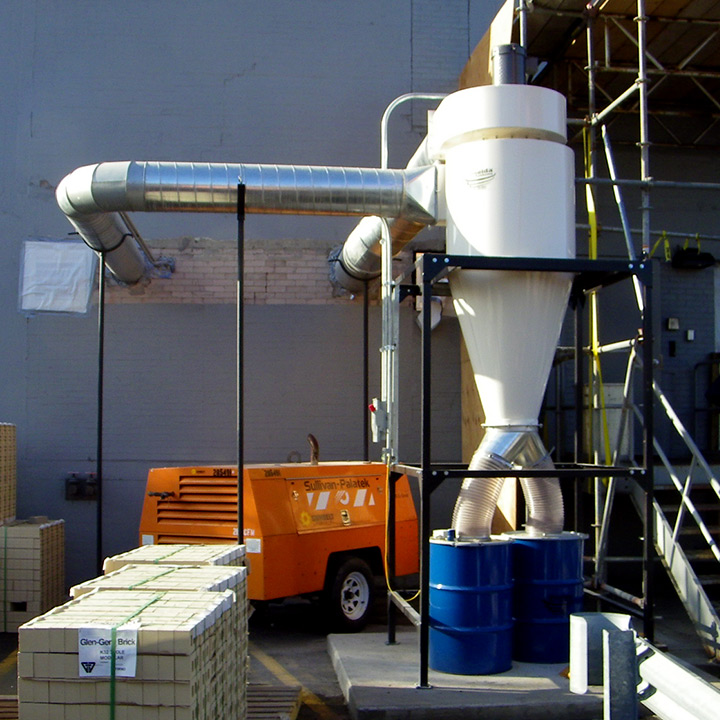

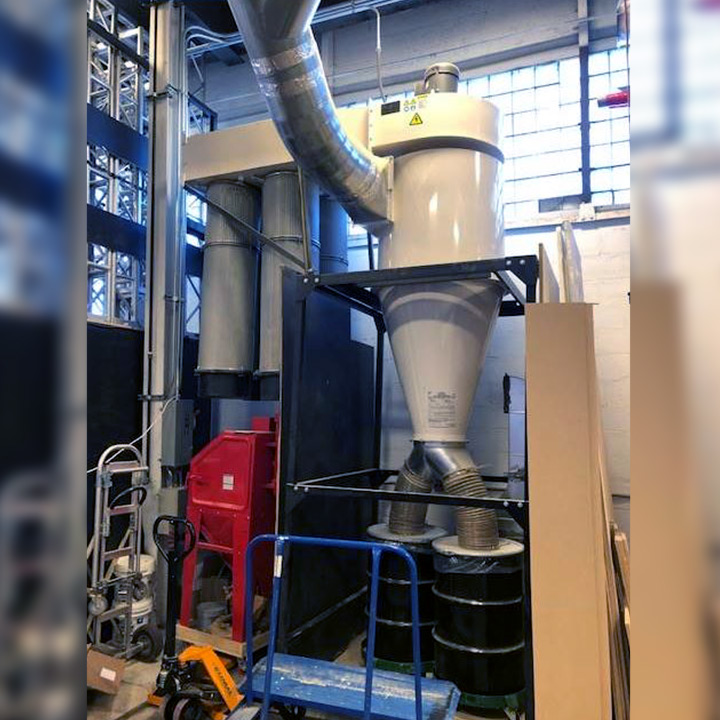

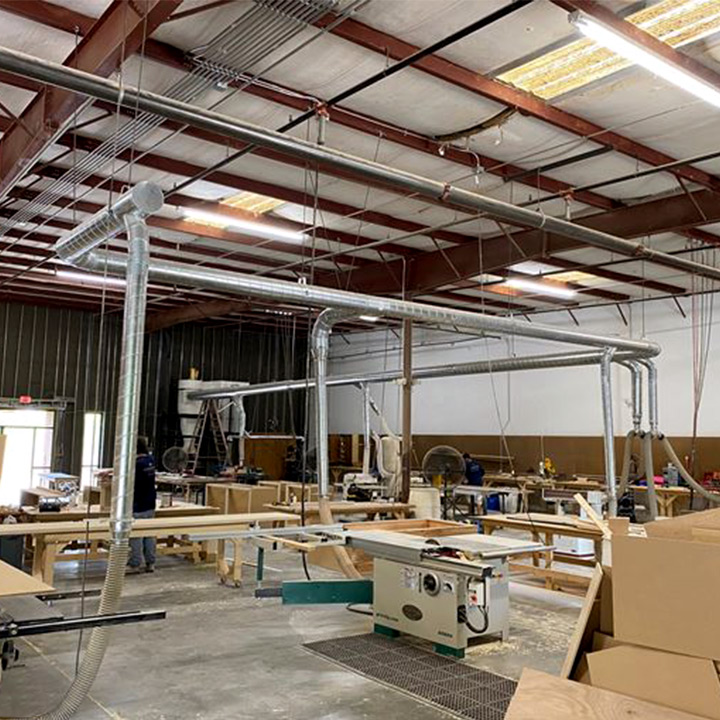

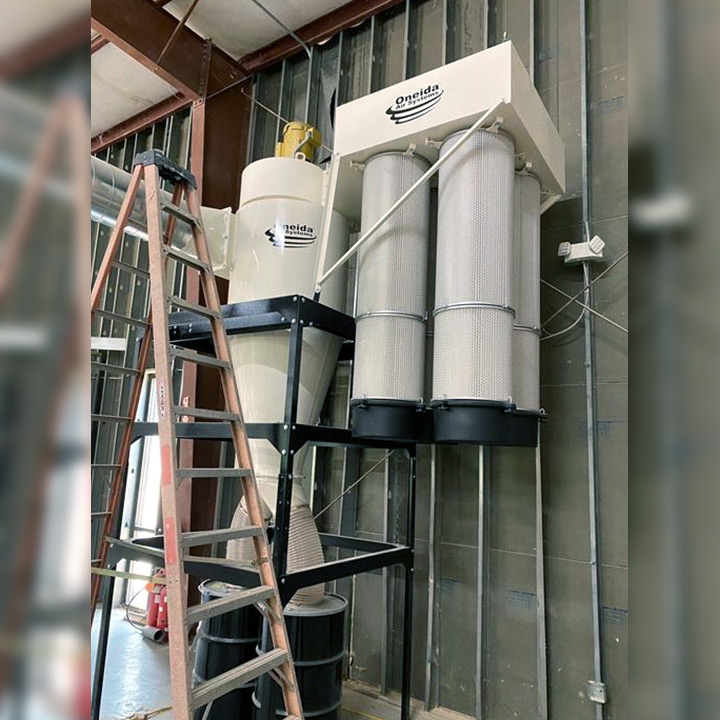

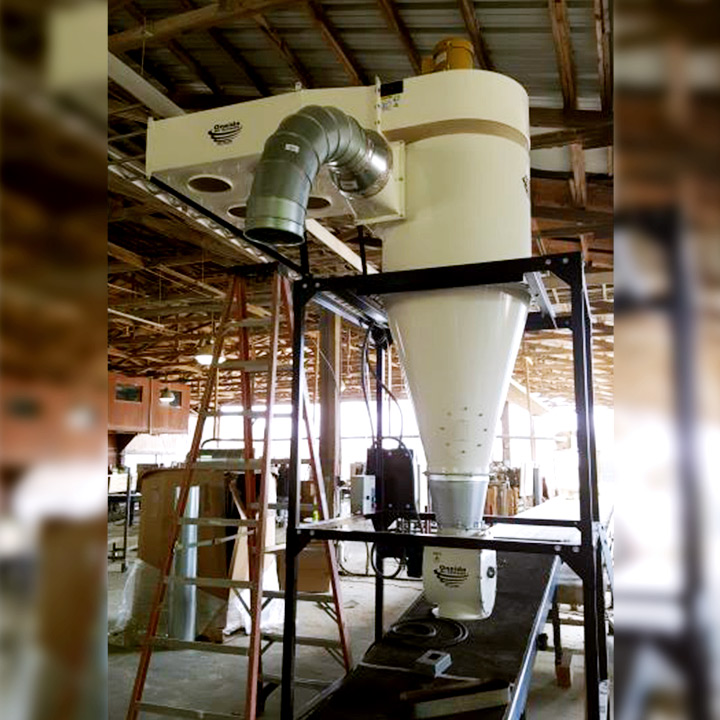

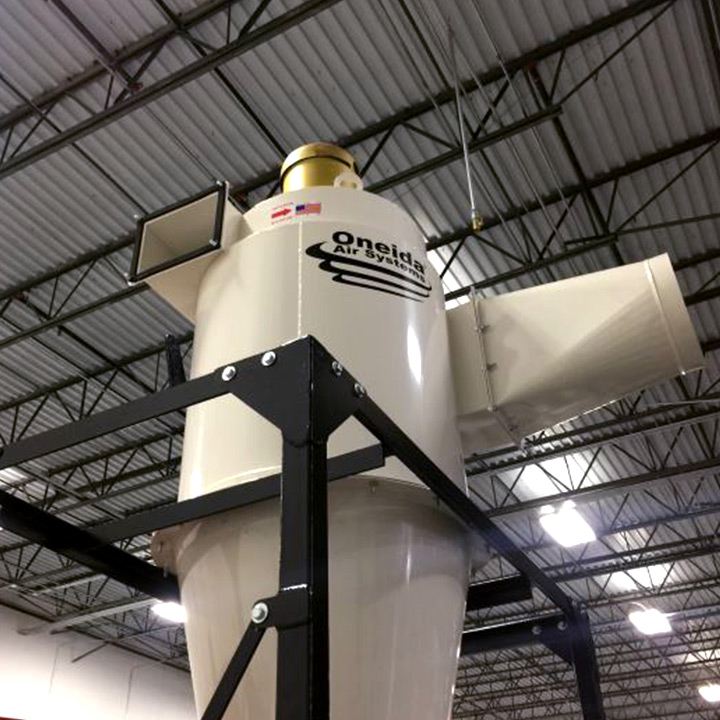

Customer Installation Photos
Continuously High Airflow Performance
Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That's why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior to the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.
- High-efficiency, fan blower motor - Made in USA.
- Industrial-grade brushless motor designed for continuous duty.
- Wired for three phase power for commercial applications.
- Includes grease fittings for easy maintenance or taken to local U.S. service centers.
- Delivers up to 6,000 Actual CFM at 2.33" S.P. - ample airflow for multiple woodworking tools at once.
- Low pitch noise level provides ideal operator comfort.
- System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.
- Heavy-gauge steel fan housing, full seam welded, built to last a lifetime.

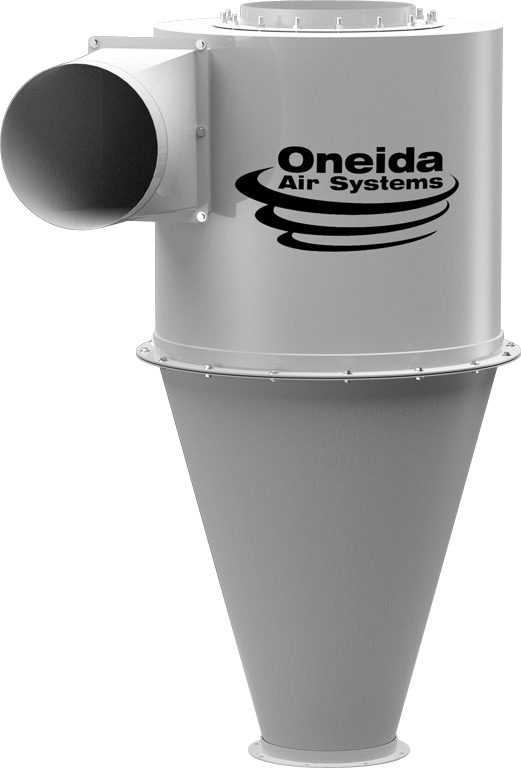

Ultra-High Efficiency Steel Cyclone Separator
Features Oneida Air Systems' unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.
- Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
- Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
- Rectangular, neutral-vane inlet with 14" dia. square to round adapter.
- Industrial 16 gauge steel construction with full welded, airtight seams.
- Durable, rust preventative, almond-white powder coat finish.
High Quality & Serviceable Filtration
Our industrial Direct Drive systems use spunbond polyester cartridge filters that are specifically designed for dust collection applications - providing unbeatable airflow and filtration performance - and are proudly made in the USA! Choose a filter plenum option that best meets your application's needs (Filter Sold Separately).
- We full stands by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
- Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.
- Patented filter stacking system provides the same filtration area as a single, larger filter, but without the cumbersome weight and installation.
- Patented internal acoustic foam silencers reduces noise caused by air vibrations by 1–2 dBa
- Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maintenance.
Configurable Waste Containment Systems
Whether your system is connected to just a few saws, drum sanders, or industrial CNC equipment, Oneida Air Systems recognizes that the amount of waste produced by shops can vary significantly; We offer a wide variety of waste handling accessories to suit the needs of any work environment. All options are mounted to a highly durable, angle iron stand with a rust-preventative, powder coat finish.
- Air Lock Model: Ideal for shops with large amounts of waste production and provides the most cost effective and convenient disposal option. The dust collector can operate continuously while dust and debris is automatically fed to the container below, eliminating downtime for emptying. The customer must supply their own waste container for the system.
- Dual Drum Model: Ideal for any shops with varying quantities of waste production. Waste is deposited evenly between both 55 gal. drums, doubling the time needed between emptying. The system must be powered down to empty either drum.
| Horsepower | 15 hp |
|---|---|
| Motor Type | U.S. TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 208-230V, 460V |
| Recommended Breaker Size | Call for Info |
| Amperage (Typical) | 37.5-34A (17A @ 460V) |
| Phase Option | Three-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type | 4 Bare Wires |
| Impeller Type | Backward inclined, welded carbon steel. |
| Impeller Size | 18" Dia. |
| Real CFM Rating | 6,000 Actual CFM at 2.3" S.P. |
| Noise Level | 85-87 dBA @ 10 ft |
| Waste Capacity | 110 Gallons, Customizable |
| Remote Control | Sold Separately |
| Remote Control Part # | For 208-230V Models: Item #AXR220003 For 460V Models: Call for info |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | Round: 14" Dia. Square ID: 10"(W) x 16-1/2"(H) Square OD: 12-3/8"(W) x 18-3/8"(H) |
| Outlet Size | Round: 16" Dia. Square ID: 20-1/4"(W) x 11-1/2"(H) with 1-1/2" Flange |
| Discharge Size | 14" ID Flange |
| Width | 62" |
| Depth | 62" |
| Height | 172.75" |
| Height to Center of Inlet | 132.5" |
| Contents | Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Angle Iron Stand, Waste Container (Choice of Dual-Drum Splitter Kit or Rotary Air Lock Valve), Hardware
Filter/Plenum Assembly Sold Separately |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards. |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
-
