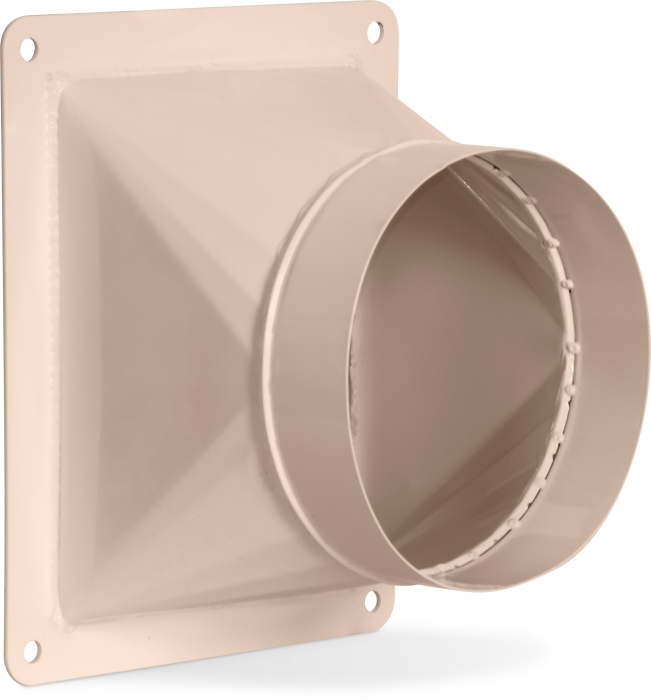

High-Vacuum Filter Plenum Flange Adapter

Skip to the beginning of the images gallery

BQX508000

High-Vacuum Filter Plenum Flange Adapter

Name: High-Vacuum Filter Plenum Flange Adapter
Brand: Oneida Air Systems
SKU: BQX508000
Price: 279.95 USD
Availability: InStock

$279.95

Converts the filter plenum elbow's 12.5x10.125" flange to accept 8" dia. crimped ductwork components. Used to extend the dust collector's filter assembly away from the main system to another room to reduce noise, save space, and/or provide easier access for filter maintenance. Compatible with our steel High Vacuum dust collectors.

Overview

Extend Your Dust Collector's Exhaust

This heavy-duty steel adapter can be used to connect crimped ductwork directly to the High-Vacuum dust collector's steel filter plenum elbow - useful for when one is positioning the system's filter in another room to save on space, reduce noise in the work area, or facilitate easier access for cleaning and maintenance.

Adapters are typically purchased in pairs so that one can connect to the flange on the fan blower and the other to the flange of the filter plenum elbow. Crimped ends should be pointed in the direction of airflow i.e. away from the dust collector and towards the filter.

Please Note: Our Exhaust Adapters are specifically designed for use with Oneida Air System dust collectors. Refer to the compatibility chart for specific information.

Raw on the round 8" diameter end to accept connections with crimped ductwork components.
Built from heavy-gauge cold rolled steel with rust preventative powder-coat finish.
White color matches existing fan housing and plenum elbow aesthetic.
12.5" x 10.125" outer flange size with four 1/4" holes (hardware not included).

System Compatibility Chart

Description	Item #
High-Vacuum	#XXK050133, #XXK050333, #XXK050346

This adapter may be compatible with older models within these product lines. Contact us if you need further assistance finding the right adapter for your dust collector.

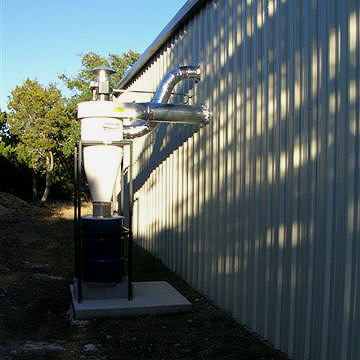

Dust Collector installed outside with exhausted extended back into the shop

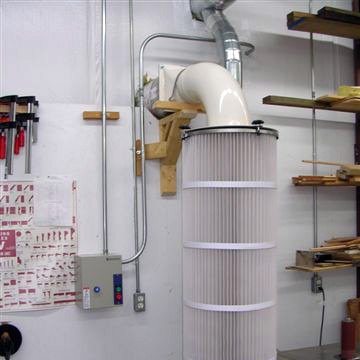

Filter plenum located inside the shop to ensure that conditioned air is maintained within the shop.

Specifications

More Information
Length of Ends	2"
Connection Type	Female
Fastener Size	5/16" Recommended
Shape	Round
Primary Build Materials	Cold Rolled Steel
Thickness	20 Gauge Body / 11 Gauge Flange
Welding	Spot Welded
Static Resistance Rating	Conductive (Metal)
Color	White
Inner Diameter	8" (Round)
Outer Diameter	Flange: 12.5" (w) x 10.125" (H)
Width	12.5"
Length	8"
Height	10.125"
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	N/A
