STZ230000

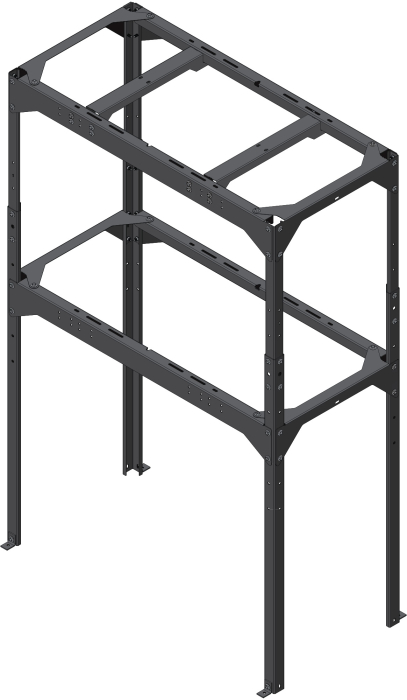

23" Cyclone Telescoping Stand
$2,197.33
Modular, angle iron stand for use with 23" dia. cyclone separators such as the 7.5HP Direct Drive system. Can be adjusted in height to accommodate a wide range of dust containers (55 gal drums, hopper, air lock, etc.).
Products Recommended For You
Check items to add to the cart or
One Stand Fits All Containers
This revolutionary designed Telescoping Stand can be adjusted in height to meet the needs of nearly any dust collection application. Built specifically for use with 23" dia. cyclone separators such as the 7.5HP Direct Drive, this stand's telescoping legs can accommodate any dust container sold by Oneida Air Systems including: 55 gallon drums, dual drum splitter kits, bulk feed hoppers, air locks, and transfer blower systems. See owner's manual for more detail specifications and dimensions.
- Compatible with single drum, dual drum, feed hoppers, air locks, and transfer blowers
- Legs and lower cross braces can each be independently adjusted to different positions
- Heavy-gauge 12GA angled steel construction
- Textured, rust-preventative powder-coat finish
When used to retrofit older systems such as the Super Dust Gorilla or Pro Series, the stand's design may limit the orientation of the filter plenum and/or require extension of the plenum.
System Compatibility Chart
| Description | Item Number |
|---|---|
| 5HP Dust Gorilla Pro | #XGK050105H, #XGK050305H |
| Pro Series | #XXK200001H, #XXK200003H |
| 5HP High Vacuum |
#XXK050133, #XXK050333
(requires kit modification - call for details) |
| 7.5HP Direct Drive | #XXK07, #XXK070323-220-155, #XXK070323-220-255, #XXK070323-220-AIR, #XXK070323-460-155, #XXK070323-460-255, #XXK070323-460-AIR |
| C-Series Cyclone Separator | #SSK180000 |
| Waste Capacity | Customizable |
|---|---|
| Primary Build Materials | Cold Rolled Steel |
| Thickness | 12 gauge (legs and long braces) 14 gauge (short braces) |
| Welding | N/A |
| Static Resistance Rating | Conductive (Metal) |
| Color | Black |
| Width | 60.5625" |
| Depth | 28.6875" |
| Height | 82" (Position 1) 92" (Position 2) 106" (Position 3) |
| Contents | 4x Top Legs, 4x Bottom Legs, 4x Long Support Braces, 4x Short Support Braces, 2x Cyclone Support Braces, 4x Stand Feet, Assembly Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | N/A |
| Product Warning | The telescoping stand should be installed on a flat, stable base capable of supporting the weight of the entire system (including full waste containers) once assembled. |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
