SMS300021A

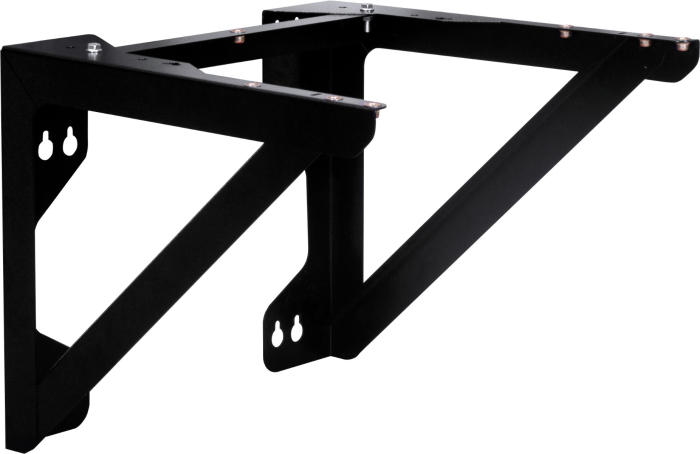

21" Cyclone Wall Mounting Bracket
$349.00
Ideal for applications where the system needs a custom mounting height or where floor space needs to be conserved. Designed for use with dust collection systems that feature a 21" dia. cyclone barrel (see table below). Heavy-gauge, angled steel construction with powder coat finish provides for industrial longevity.
Products Recommended For You
Check items to add to the cart or
Custom Mounting Height for Your Dust Collection System
Designed specifically for use with Oneida Air Systems' cyclonic dust collectors, this industrial metal bracket can be bolted to your shop's wall studs to allow you to mount the system anywhere you like. This is useful if you want to cut down on the overall footprint of your system, if you want to want to use non-standard waste container, or if you need to line up your system's inlet height to meet with an existing ductwork line.
- Compatible with standard 16" wall stud spacing
- Adjustable positioning to accommodate different cyclone / filter orientations
- Heavy-gauge 12GA angled steel construction
- Textured, rust-preventative powder-coat finish
- Customer must supply hardware for mounting bracket to wall.
System Compatibility Chart
| Description | Item # |
|---|---|
| 3-5HP Dust Gorilla Pro SMART Boost Dust Collector | #XGK030035, #XGK030055, #XGK050035, #XGK050055, #XGK030105H-S, #XGK050105H-S |
| 1.5-3HP V-System SMART Boost Dust Collector | #XXVS300035, #XXVS300055 |
| C-950 Cyclone Separator | #SSK090000 |
| 3HP Dust Gorilla Pro Dust Collector | #XGK030105H, #XGK030305H |
| 2-3HP Super Dust Gorilla Dust Collector | #XGK020105H, #XGK030105H |
| 3HP Pro-1500 Dust Collector | #XXK150001H, #XXK150003H |
| 5HP SMART Pro Dust Collector | #XXS200001 |
| Waste Capacity | Customizable |
|---|---|
| Primary Build Materials | Cold Rolled Steel |
| Thickness | 14 Gauge |
| Welding | N/A |
| Static Resistance Rating | Conductive (Metal) |
| Color | Black |
| Contents | Left Bracket, Right Bracket, Cross Brace, Mounting Template, Assembly Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | N/A |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
