Quick-Clamp Duct Long Radius Elbows
GEL
Be the first to review this product

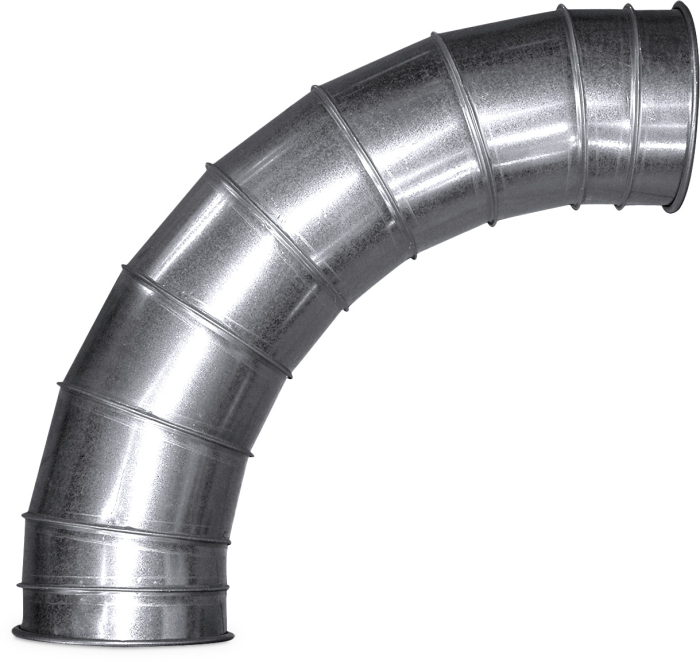

Quick-Clamp Duct Long Radius Elbows

Only %1 left
As low as $144.00

Email
Add to Wish List Add to Compare
Ductwork elbow constructed from heavy-gauge galvanized steel with a long, gradual turn for optimal airflow performance Features rolled ends to accept Quick-Clamp Duct fittings. Available in a variety of sizes; Construction (pressed or gored), CLR, and gauge varies by pipe diameter. Some sizes not eligible for returns.
Products Recommended For You
  1. Quick-Clamps
    Quick-Clamps
    As low as $13.95
    Add to Wish List Add to Compare
  2. Quick-Clamp Duct Piping
    Quick-Clamp Duct Piping
    As low as $44.95
    Add to Wish List Add to Compare
  3. Quick-Clamp Duct Sleeves w/ O-Ring
    Quick-Clamp Duct Sleeves w/ O-Ring
    As low as $25.95
    Add to Wish List Add to Compare
  4. Quick-Clamp Duct Ball Joints
    Quick-Clamp Duct Ball Joints
    As low as $269.00
    Add to Wish List Add to Compare
  5. Quick-Clamp Duct Wye Joints
    Quick-Clamp Duct Wye Joints
    As low as $169.00
    Add to Wish List Add to Compare
  6. Quick-Clamp Duct Blast Gates
    Quick-Clamp Duct Blast Gates
    As low as $52.95
    Add to Wish List Add to Compare
  7. Quick-Clamp Duct Hose Adapters
    Quick-Clamp Duct Hose Adapters
    As low as $32.95
    Add to Wish List Add to Compare
  8. Heavy Fixed Elbow Joints
    Heavy Fixed Elbow Joints
    As low as $21.95
    Add to Wish List Add to Compare
  9. Long Radius Adjustable Elbows
    Long Radius Adjustable Elbows
    As low as $19.95
    Add to Wish List Add to Compare
  10. Quick-Clamp Duct Short Radius Elbows
    Quick-Clamp Duct Short Radius Elbows
    As low as $58.95
    Add to Wish List Add to Compare

Gradual Bends for Maximum Airflow

Easy to Install – NO Rivets, NO Screws, and NO Welding!

These large radius elbows are constructed from heavy-gauge galvanized steel with rolled-ends on each opening for use with Quick-Clamp Duct Clamps, allowing for easy adjustments and fast installations. Spend less time measuring, cutting, and assembling your ducting so you can get right to work!

Ductwork elbows with large radius turns are ideal for any application. The gradual bend minimizes air resistance, ensuring that the dust collection system performs optimally. These elbow fittings are available in a variety of sizes to meet a large range of layouts.

Includes elbow only, clamps and o-rings sold separately.

This Item May Not Be Returnable

We are sorry but we cannot accept returns for specific sizes of this product. Please be certain that this product is the right size for your application prior to ordering. Refer to our return policy for more information.

Size CLR Gauge Construction Welding
3" to 7" dia. 1.5x 24 Gauge Pressed Stitch Welded
8" to 12" dia. 2.5x 22 Gauge Gored Spot Welded
13" dia. and larger 2.5x 20 Gauge Gored Spot Welded
More Information
Ductwork Type Quick-Clamp
Connection Type Bidirectional
Shape Round
Primary Build Materials Galvanized Steel
Thickness 24 Gauge (3" to 7" dia.)
22 Gauge (8" to 12" dia.)
20 Gauge (13" to 24" dia.)
Welding N/A
Static Resistance Rating Conductive (Metal)
Color Silver
Manufacturer Nordfab
Manufacturer Statement Made in USA
Warranty Information N/A
Proposition 65 WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.
Is your Quick-Clamp Duct compatible with Nordfab Quick-Fit Ducting?
Yes! As long as the opening pipe diameters are the same, OAS Quick-Clamp Duct components can be combined and used interchangeably with Nordfab® QF ducting and other common clamp-together ductwork products.
Will I need to hire a technician to install Quick-Clamp Duct?
No. Whether you're installing the duct yourself or installing for a customer, Oneida Air Systems' Quick-Clamp Duct is simple enough for anyone to use.
What tools will I need to install Quick-Clamp Duct components?
Besides the standard tape measure, ladders, and any tools that maybe required for attaching hangers, all you'll need to install Quick-Clamp Duct is a saw (preferably a reciprocating/saws-all) to cut the duct for fitting to various lengths. But these are tools required by any ductwork installation. With Oneida Air Systems' Quick-Clamp Duct there's no riveting, no screws, and no welding required.
What pressures will OAS Quick-Clamp Duct withstand?
Oneida Air Systems' Quick-Clamp Duct will withstand negative pressures in excess of 50 inches negative water pressure. The duct is NOT a high pressure positive duct.
