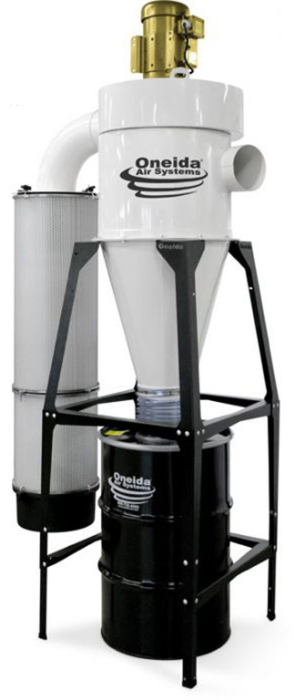

5hp 460V High Vacuum 55 Gal. Freestanding MERV-13 Cyclone Dust Collector
High Vacuum Pressure Dust Control for Industrial CNC Cutting Tools
Our 5HP High-Vacuum™ Dust Collector is one of our most powerful professional dust collection systems and is designed for small to medium sized shops running tools, such as CNC machines, where high static pressure is needed to adequately collect airborne dust. The unique configuration of our High-Vacuum systems make full use of the high-efficiency U.S. motor and cyclone separator to deliver maximum static pressure to multiple tools simultaneously.
This high pressure system is ideal for use with any type of CNC cutting tools as well as saws, jointers, lathes, shapers, planers, routers, sanders, and more!
Learn how the High Vacuum helped Kawneer North America improve their production workflows. Read the case study.
Included Features & Components
- Industrial 5HP U.S. Made Fan Blower Motor
- Magnetic Starter w/ Overload Protector
- Heavy-Gauge Seam Welded Steel Cyclone Separator
- High-Efficiency Modular Cartridge Filters
- Real-time Filter Efficiency Gauge
- Internal Foam Silencer
- Compact, Heavy-Duty Steel Angle Frame Stand
- 55-Gallon Reinforced Steel Dust Bin
- 2 Year Limited Warranty
- cETLus Certified and NFPA Compliance Ready
"It's important to understand the dangers of the fine dust that wood shops create. Long term exposure can cause serious health problems and that's why I use and promote [Oneida Air Systems'] products. Their cyclone systems are excellent at filtering out the fine dust particles that are dangerous for woodworker's health. "
Andy Rawls, Fine Texas Woodcraft
Continuously High Airflow Performance
Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That's why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior than the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.
- High-efficiency, fan blower motor - Made in USA
- Industrial-grade brushless motor designed for continuous duty
- Wired for three phase power (1-phase options also available).
- Delivers up to 2,150 Actual CFM at 2" S.P. - ample airflow for multiple woodworking tools at once.
- Low pitch noise level provides ideal operator comfort
- System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.
- Heavy-gauge steel fan housing, full seam welded, built to last a lifetime.
Ultra-High Efficiency Steel Cyclone Separator
Features Oneida Air Systems' unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.
- Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
- Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
- Large 8" dia. neutral-vane inlet for use with 8" to 6" ductwork layouts.
- Industrial 16 gauge steel construction with full welded, airtight seams.
- Durable, rust preventative, almond-white powder coat finish.
High Quality & Serviceable Filtration
The High Vacuum system uses spunbond polyester cartridge filters that are specifically designed for dust collection applications - providing unbeatable airflow and filtration performance - and are proudly made in the USA!
- OAS fully stands by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
- Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.
- Patented filter stacking system provides the filtration area of a single larger filter, but without the cumbersome weight and install, and provides additional savings when replacements are required.
- Patented internal acoustic foam reduces noise caused by vibrating outgoing air by 1–2 dBa
- Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.
- Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maitenance
Compact, Configurable Design
With its compact footprint, the 5HP High-Vacuum system can be configured to work easily into most ductwork setups. Designed for larger shops running multiple tools, this system can also be outfitted with different support systems and dust container configurations (e.g. splitter kit, hoppers, airlocks, etc.) - Call for details.
Please Note: The High Vacuum includes the Leg Extension Kit for use with the stand, allowing the height to be adjusted to accommodate 55-gallon drums and/or the drum dolly. See product documentation for more details.
| Horsepower | 5 hp |
|---|---|
| Motor Type | U.S. TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 460V |
| Recommended Breaker Size | 30A |
| Amperage (Typical) | 5.9A |
| Phase Option | Three-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type | 4 Bare Wires |
| Impeller Type | Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy. |
| Impeller Size | 16-1/2" Dia. |
| Real CFM Rating | 2,150 Actual CFM at 2" S.P. |
| Free Fan CFM Rating | 3,225 CFM |
| Noise Level | 75-81 dBA @ 10 ft |
| Cyclonic Separation Efficiency | Removes over 99% of fine wood dusts |
| Filter Type | Izumi Axtar Spunbond Media |
| Filtration Efficiency | 99.9% @ 0.2-2.0 microns |
| Total Filtration Area | 155 sq ft |
| Waste Capacity | 55 Gallons |
| Remote Control | Call for Info |
| Remote Control Part # | Item #AKR220003 |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | 8" Dia. |
| Outlet Size | Square ID: 10-1/32" (W) x 7-41/64" (H) with 1-1/4" Flange |
| Discharge Size | 10" Dia. |
| Width | 30" (Stand only) 56" (with Filter) |
| Depth | 30" (Stand only) 33-1/4" (with Filter) |
| Height | 109-1/2" |
| Height to Center of Inlet | 80-1/4" |
| Contents | Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Filter Plenum, 2x Stacking Cartridge Filters, Internal Silencer, Filter Efficiency Gauge, Drum, Stand, Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards. |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
