7.5hp 230V Direct Drive Industrial MERV-13 Cyclone Dust Collector w/ Air Lock
Realize the Power of American Manufacturing
Our 7.5HP Direct Drive system is the workhorse of our industrial line of cyclonic dust collection systems - delivering maximum airflow performance within a compact, quiet, and cost-effective package. Built to last a lifetime using industrial, heavy-gauge steel components, our 7.5HP is ideal for commercial shops with fixed ductwork and multiple tools in use simultaneously.
Included Features & Components
- Industrial 7.5HP U.S. Made Motor
- Backward Inclined, Non-Sparking, Cast-Aluminum Impeller
- High-Efficiency 230V / 3-Phase Power (Need 460V?)
- Magnetic Starter with Overload Protector
- Heavy-Gauge Solid Welded Steel Cyclone Separator with Clean-Out Access Door
- Modular Stacking Spunbond Cartridge Filters
- Real-time Filter Efficiency Pressure Gauge
- Drop-In Acoustic Foam Filter Silencers
- Industrial Angle Iron Frame Stand
- Rotary Air Lock Feeder Valve
- 2 Year Limited Warranty
- cETLus Certified and NFPA Compliance Ready

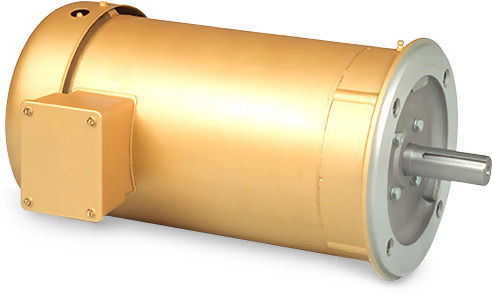

Continuously High Airflow Performance
Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That's why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior than the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.
- High-efficiency, fan blower motor - Made in USA.
- Industrial-grade brushless motor designed for continuous duty.
- Uses 3-phase power for commercial applications.
- Includes grease fittings for easy maintenance.
- Low pitch noise level provides ideal operator comfort.
- Heavy-gauge steel fan housing, full seam welded, built to last a lifetime.
Ultra-High Efficiency Steel Cyclone Separator
Features Oneida Air Systems' unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.
- Removes up to 99% of fine dust and bulk debris from the airstream, before it reaches the filter.
- Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
- Significantly extends the lifespan of the filter and reduces downtime needed for maintenance.
- Rectangular, neutral-vane inlet with 10" dia. square-to-round adapter.
- System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.
- Industrial 16 gauge steel construction with full welded, airtight seams.
- Highly durable, rust preventative, almond-white powder coat finish.
High Quality & Serviceable Filtration
Our industrial Direct Drive systems use spunbond polyester cartridge filters that are specifically designed for dust collection applications - providing unbeatable airflow and filtration performance - and are proudly made in the USA!
- We fully stand by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
- Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.
- Patented filter stacking system provides the same filtration area as a single, larger filter, but without the cumbersome weight and installation.
- Patented internal acoustic foam silencers reduces noise caused by air vibrations by 1–2 dBa.
- Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maintenance.
Automated Bulk Waste Disposal
Rotary air locks provide operators with the most economical, productive, and efficient way to handle bulk dust and debris, making them ideal for cabinetmakers, furniture manufacturers, and other commercial shops generating high volumes of waste material.
Our airlocks use high-efficiency US-made motors to control the flow of discharge material from the dust collector via a rubber padded wheel that rotates at a preset speed. The airtight seal with the collector is maintained at all times, ensuring peak airflow performance while waste is continuously deposited into open bins, industrial hoppers, or transfer blower systems.
- Significantly reduces shop downtime and labor costs for emptying bins while limiting dust exposure within the work environment.
- Helical drive US-made motor is compact, durable, and quiet.
- Valve constructed from fully seam-welded, cold rolled steel with powder coat finish.
- Long lifespan rubber paddle wipers can be easily replaced by the operator.
Our system operates at a slower rotational speed than competitive products for reduced energy usage, quieter operation, and less wear and tear on the motor and air lock seals - all without impacting the flow of dust and debris through the system!
| Horsepower | 7-1/2 hp |
|---|---|
| Motor Type | U.S. TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 208-230V |
| Amperage (Typical) | 19-17.2A |
| Phase Option | Three-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type | 4 Bare Wires |
| Impeller Type | Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy. |
| Impeller Size | 16-1/2" Dia. |
| Real CFM Rating | 2,514 Actual CFM at 1.5" S.P. |
| Free Fan CFM Rating | 4,080 CFM |
| Maximum Suction | 13" W.C. |
| Noise Level | 83 dBA at 10ft |
| Cyclonic Separation Efficiency | Removes over 99% of fine wood dusts |
| Filter Type | Izumi Axtar Spunbond Media |
| Filtration Efficiency | 99.9% @ 0.2-2.0 microns |
| Total Filtration Area | 310 sq ft |
| Waste Capacity | Customizable |
| Remote Control | Sold Separately |
| Remote Control Part # | Item #AKR220003 |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | Round: 10" Dia. Square ID: 6-7/8"(W) x 13-13/16"(H) Square OD: 9-1/4"(W) x 16-3/8"(H) |
| Outlet Size | Round: 12" Dia. Square ID: 10"(W) x 7-1/2"(H) |
| Discharge Size | 10" Dia. Flange |
| Width | 80.3" |
| Depth | 39.2" |
| Height | Position 1: 151-13/16" Position 2: 137-13/16" Position 3: 127-13/16" |
| Contents | Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Clean-out Access Door, Square-to-Round Inlet Adapter, Filter Plenum, 4x Modular Cartridge Filters, Filter Efficiency Gauge, Angle Iron Stand, Rotary Air Lock Valve, Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards. |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
