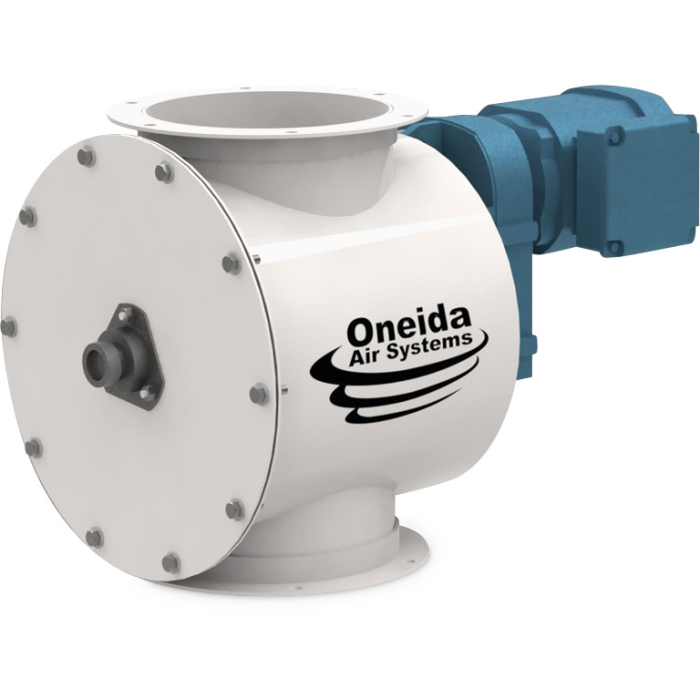

10" 3ph Direct Drive Rotary Air Lock Valve
Automated Bulk Waste Disposal Results in Significant Savings for Larger, Commercial Shops
Rotary Air Locks provide operators with the most economical, productive, and efficient way to handle bulk dust and debris, making them ideal for cabinetmakers, furniture manufacturers, and other commercial shops generating high volumes of waste material.
Our Air Locks use a high-efficiency helical drive, US-made 0.25HP hollow shaft gear motor to control the flow of discharge material from the dust collector via a rubber padded wheel that rotates at a preset speed. The airtight seal with the collector is maintained at all times, ensuring peak airflow performance while waste is continuously deposited into open bins, industrial hoppers, or transfer blower systems.
Features & Benefits:
- Significantly reduces shop downtime and labor costs for emptying bins
- Limits dust exposure within the work environment
- Helical drive US-Made motor is compact, durable, and quiet
- Valve constructed from fully seam-welded, cold rolled steel with powder coat finish
- Long lifespan rubber paddle wipers can be easily replaced by the operator
- 10" dia. flange ideal for use with our Direct Drive dust collection systems (with custom clean-out cone)
- Can be used with any size waste container (call for info)
- Operates at a slower rotational speed than competitive products for:
- Reduced energy usage
- Quieter operation
- Far less wear and tear on Air Lock seals
- All without impacting the flow of dust and debris through the system!
- Designed for wood and other non-explosive dusts only. Not intended for severe duty.
Check out these great reviews and installation videos shared by our customers over the years!
| Horsepower | 1/4 hp |
|---|---|
| Motor Type | Helical Gear Head Motor |
| Amperage (Typical) | 1.6A |
| Phase Option | Three-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type | 4 Bare Wires |
| Impeller Type | Welded steel with industrial, replaceable rubber paddles. |
| Volume Per Minute | Full Rating: 18.5ft³ / min at 100% loading; 5.5ft³ / min at 30% loading Usable Rating: 4.9ft³ / min at 100% loading; 1.6ft³ / min at 30% loading Note: normal operating capacity varies by material. |
| Waste Capacity | Customizable |
| Remote Control | Not Applicable |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | 10" ID Flange |
| Discharge Size | 10" ID Flange |
| Contents | Motor, Valve Housing, Motor Starter |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 1 Year Limited Warranty |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
-
