5HP 1ph Transfer Blower Kit
Pneumatic conveyance system for use with rotary feeder valves to transfer bulk waste away from the dust collector. This allows dust and debris to be fed to a remote location of your choosing (e.g. tilt truck, hopper, truck, etc.) - ideal for large commercial shops producing continuous waste. Blower system features an industrial, 230V 1-phase U.S. motor with magnetic starter and a variety of fittings for connecting the air lock's 10" discharge flange to 8" dia. rigid, steel ducting.
Bulk Handling for Dust and Debris

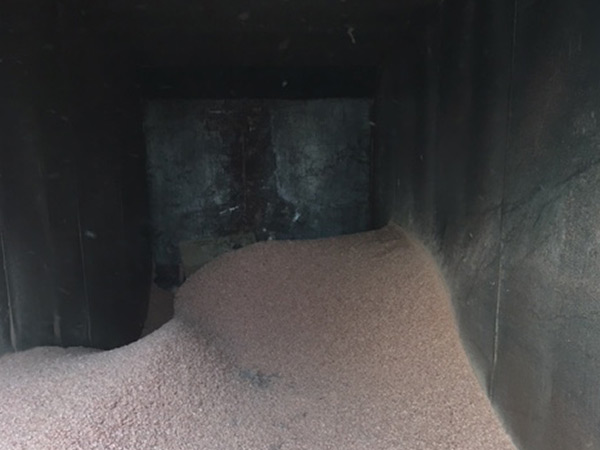

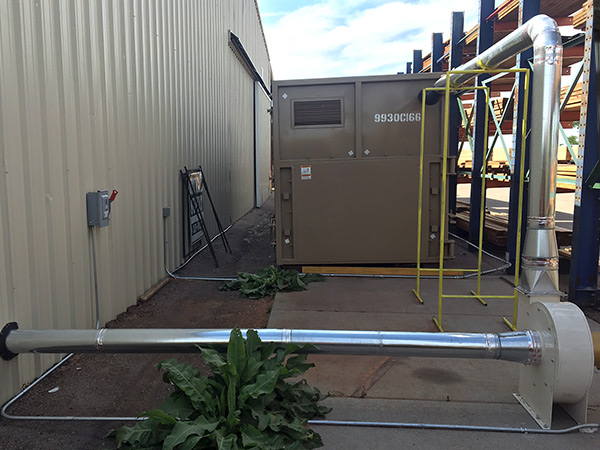

Ideal for commercial applications that produce high volumes of dust, Oneida Air Systems' transfer blower systems are great for conveying dust away from the primary dust collection system to be deposited in a large, remote container for disposal (e.g. trailer, hopper, dumpster, truck bed, etc.). Conveying the dust to a remote location is far more cost effective than continuously emptying 55 gallon containers and saves your shop significant time and money in labor costs.

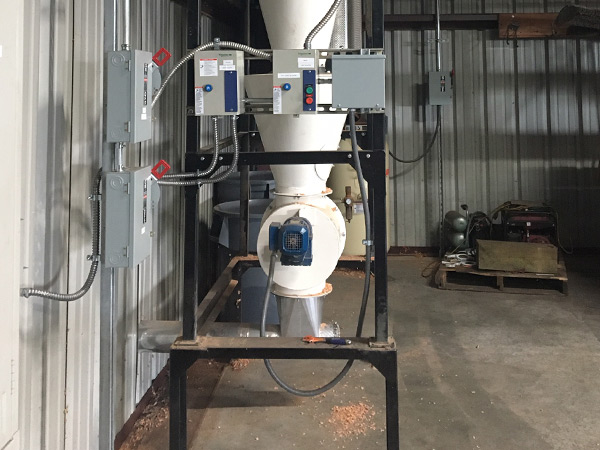

Recommended installation is connected to our Rotary Air Lock Valves to preserve airflow performance within the dust control system. This kit includes heavy-gauge steel ductwork components to connect to your air lock's flanged opening - combine with 7" dia. straight piping (sold separately) based on your shop's needs.
Benefits & Features
- 5HP High-Efficiency 1-phase U.S. Motor (3-phase option available).
- Magnetic motor starter with overload protector.
- Industrial blower construction with full welds and heavy gauge steel with powder-coated finish.
- Blower can be surface mounted with an outlet orientation that rotates at 45 degree increments.
- Backward inclined fan wheel made from cast-aluminum alloy.
Rotary air lock valve and straight pipe fittings not included with this kit and are shown only as an illustration.
| Horsepower | 5 hp |
|---|---|
| Motor Type | U.S. Baldor® TEFC Motor |
| Motor Service Factor | 1 |
| Voltage | 220-240V |
| Recommended Breaker Size | 30A |
| Amperage (Typical) | 19.5A |
| Phase Option | Single-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type | NEMA 6-20 |
| Power Cord Length | 10 feet |
| Impeller Type | Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy. |
| Impeller Size | 15" Dia. |
| Real CFM Rating | 1,950 Actual CFM |
| Waste Capacity | Customizable |
| Remote Control | Sold Separately |
| Remote Control Part # | Item #AXR220000 |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | 10" Flange (8" Dia. at Blower) |
| Outlet Size | 7" Dia. |
| Contents | Blower Motor Assembly, Fan Housing, Magnetic Starter, Blow-Through Adapter, 3x Adjustable Elbows, Long-Taper Reducer, Square-to-Round Adapter, Male Pipe Adapter |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 1 Year Limited Warranty |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
-
