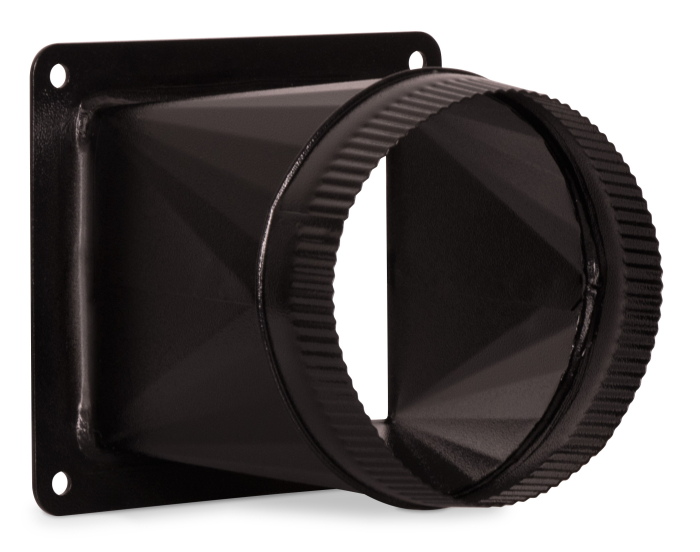

Dust Gorilla Pro / V-System Blower Outlet Flange Adapter
Extend Your Dust Collector's Exhaust
This heavy-duty steel adapter can be used to connect ductwork directly to the Dust Gorilla Pro or V-System dust collector's fan blower outlet - useful for positioning the system's filter in another to room save on space, reduce noise in the work area, or facilitate easier access for cleaning and maintenance. In some locations customers can also use these adapters to directly exhaust their dust collector's airstream outside, eliminating the dust collector's filter entirely.
Adapters are typically purchased in pairs so that one can connect to the flange on the fan blower and the other to the flange of the filter plenum elbow. Crimped ends should be pointed in the direction of airflow i.e. away from the dust collector and towards the filter.
Please Note: Our Exhaust Adapters are specifically designed for use with Oneida Air System dust collectors. Refer to the compatibility chart for specific information.
- Crimped on the round 8" diameter end for connections to spiral pipe or flex-hose.
- Built from heavy-gauge cold rolled steel with rust preventative powder-coat finish.
- Black color matches existing fan housing and plenum elbow aesthetic.
- 10" x 9" outer flange size with four 1/4" holes (hardware not included).
- Includes roll of neoprene foam gasket for ensuring an airtight seal on the flange.
System Compatibility Chart
| Description | Item # |
|---|---|
| V-System | #XXVM001500, #XXVM003035, #XXVM003055, #XXVM003035W, #XXVM003055W |
| Dust Gorilla Pro | #XGK030035, #XGK030055, #XGK050035, #XGK050055, #XGK030035W, #XGK030055W, #XGK050035W, #XGK050055W |
This adapter may be compatible with older models within these product lines. Contact us if you need further assistance finding the right adapter for your dust collector.
| Length of Ends | 2" |
|---|---|
| Connection Type | Male |
| Crimp Depth | 1" |
| Fastener Size | 5/16" Recommended |
| Shape | Round |
| Primary Build Materials | Cold Rolled Steel |
| Thickness | 20 Gauge Body / 11 Gauge Flange |
| Welding | Spot Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | Black |
| Inner Diameter | 8" (Round) 7" x 6.25" (Square) |
| Width | 10" |
| Length | 8" |
| Height | 9" |
| Contents | Square to Round Adapter, Neoprene Foam Gasket |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | N/A |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
-
