Internal 10" x 16" C-Rated Spunbond Cartridge Filter

Skip to the beginning of the images gallery

FCS010716

Internal 10" x 16" C-Rated Spunbond Cartridge Filter

$219.00

Engineered for low pressure drop using durable Izumi Axtar spunbond media; 3rd-party tested for filtration efficiency. Features wide-spaced pleats with teflon-like PTFE coating for quick & easy cleaning. Designed for use with older 2HP Component systems by OAS.

Overview

Compact Filtration for 2HP Component Dust Collection Systems

This Spunbond Cartridge Filter is excellent for small, flour-sized dust particles as small as 1 micron and can replace the role of multiple polyester filter dust bags. Its wide spaced pleating and non-stick PTFE membrane coating resists clogging and faciliatates easy cleaning using reverse-blown compressed air or water.

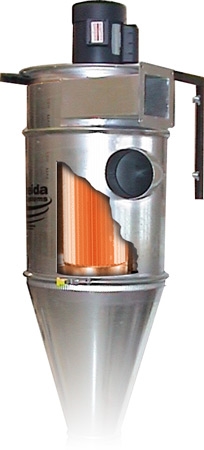

This unit was originally designed for internal use with our older 2HP Dust Collection Systems (Item # XXK020100) but can be used in any application of your choosing. See specifications tab for more detailed information.

Specifications

More Information
Horsepower Rating	2HP
Filter Type	Izumi Axtar Spunbond Media
Filtration Efficiency	99.9% @ 0.2-2.0 microns
MERV Rating	MERV 13 ±
Filter End Type	Open/Closed
Total Filtration Area	50 sq ft
Primary Build Materials	Galvanized Steel, Polyester
Reinforcement	Internal Wire Cage
Static Resistance Rating	N/A
Color	White
Shape	Cylindrical
Inner Diameter	7"
Outer Diameter	10"
Width	10"
Depth	10"
Height	16.5"
Manufacturer	RP Fedder
Warranty Information	N/A
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

Documents

FAQ

How often should I clean the dust collector's cartridge filter?

This can vary widely depending on how often your dust collector is used and what kind of dusts it's exposed to but you should typically clean it only once you've noticed a considerable drop in suction performance. In our experience this can be around once per year, but with heavy amounts of sanding it could be as often as once per month. A meter such as our Filter Efficiency Gauge can also be used to monitor pressure buildup and inform you when the filter needs to be cleaned.

How do I clean this filter?

Clean this filter using compressed air blown from the outside of the filter. Click "Read More" for further instructions.

When should I replace this filter?

With regular maintenance, our cartridge filters can easily last up to 5 years. Your filter should only be replaced if thorough cleanings do not help to restore your suction performance.
