7.5hp Direct Drive Industrial MERV-13 Cyclone Dust Collector

Only %1 left

As low as $7,495.00

Industrial dust collection system for large commercial shops - suitable for collecting from multiple 4"-6" dust ports simultaneously. Includes modular stacking filter system with efficiency gauge to alert the operator for cleaning. Full-welded, steel cyclone separator captures and removes fine dust and bulk debris from the airstream to provide continuously high suction power and reduce filter maintenance downtime. Custom choice of voltage (230V, 460V) and waste disposal configuration (55 gal., 110 gal., Air Lock, etc.).

Overview

Realize the Power of American Manufacturing

Our 7.5HP Direct Drive system is the workhorse of our industrial line of cyclonic dust collection systems - delivering maximum airflow performance within a compact, quiet, and cost-effective package. Built to last a lifetime using industrial, heavy-gauge steel components, our 7.5HP is ideal for commercial shops with fixed ductwork and multiple tools in use simultaneously.

This system can be configured in a variety of ways to meet the needs of your shop. See the system options section below for further details.

Included Features & Components

Industrial 7.5HP U.S. Made Motor
Backward Inclined, Non-Sparking, Cast-Aluminum Impeller
High-Efficiency 230V (or 460V) 3-Phase Power
Magnetic Starter with Overload Protector
Heavy-Gauge Solid Welded Steel Cyclone Separator with Clean-Out Access Door
Modular Stacking Spunbond Cartridge Filters
Real-time Filter Efficiency Pressure Gauge
Drop-In Acoustic Foam Filter Silencers
Industrial Angle Iron Frame Stand
Choice of 55-Gallon, 110-Gallon, Custom Sized Waste Bin
2 Year Limited Warranty
cETLus Certified and NFPA Compliance Ready

Customer Installation Photos

7.5HP Direct Drive shown with expansion chamber, rotary air lock valve, and customer supplied hopper.

7.5HP Direct Drive shown with rotary air lock valve and customer supplied hopper.

7.5HP Direct Drive shown with rotary air lock valve.

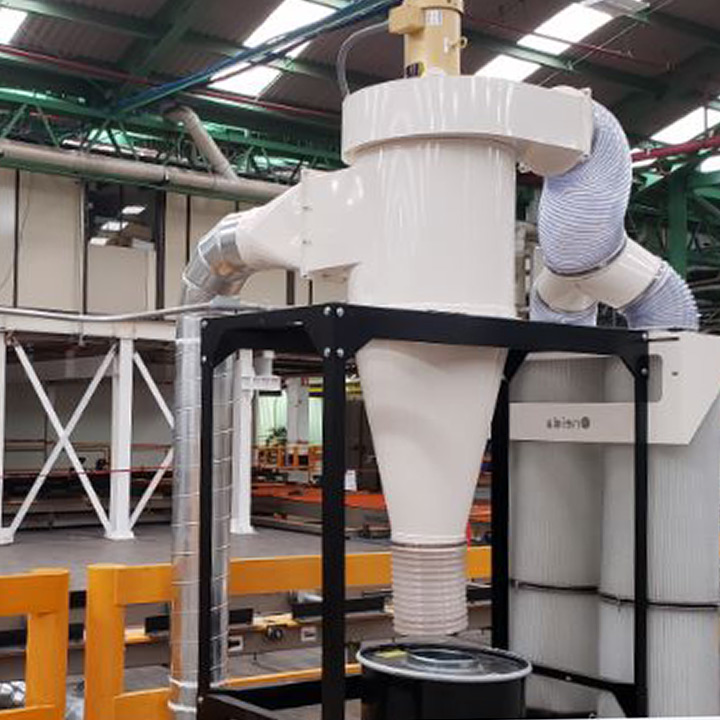

7.5HP Direct Drive shown with single 55-gallon dust bin.

7.5HP Direct Drive shown with dual 55-gallon dust bins.

7.5HP Direct Drive shown with single 55-gallon dust bin.

7.5HP Direct Drive shown with dual 55-gallon dust bins (older model shown).

7.5HP Direct Drive shown with dual 55-gallon dust bins.

7.5HP Direct Drive System Fan Performance Curve — OAS uses Actual CFM Ratings that reflect real-world airflow performance.

Continuously High Airflow Performance

Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That's why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior to the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.

Motor Features:

High-efficiency fan blower motor - Made in USA.
Industrial-grade brushless motor designed for continuous duty.
Uses 3-phase power for commercial applications (230V and 460V available).
Includes grease fittings for easy maintenance.
Low pitch noise level provides ideal operator comfort
Heavy-gauge steel fan housing, full seam welded, built to last a lifetime.

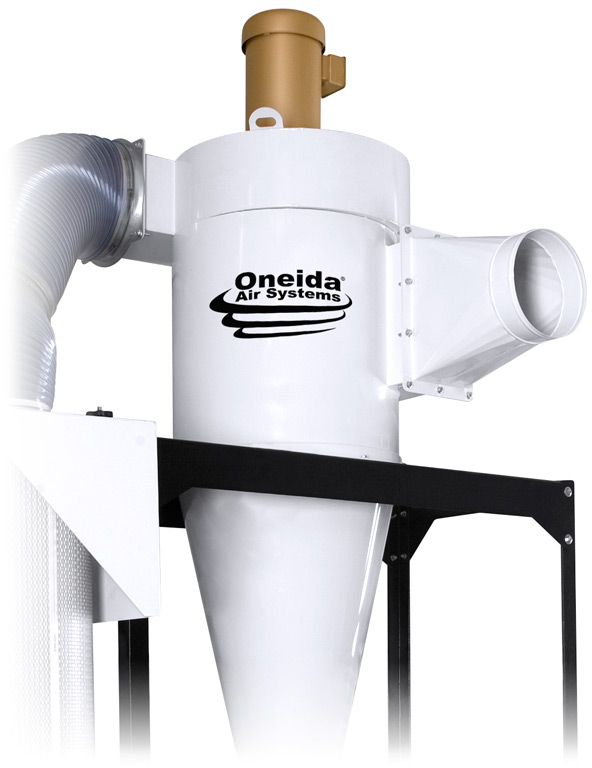

Closeup of Direct Drive cyclone — See item #SSK250000 for standalone cyclone model.

Ultra-High Efficiency Steel Cyclone Separator

Features Oneida Air Systems' unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.

Cyclone Features:

Removes up to 99% of fine dust and bulk debris from the airstream, before it reaches the filter.
Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
Significantly extends the lifespan of the filter and reduces downtime needed for maintenance.
Rectangular, neutral-vane inlet with 10" dia. square-to-round adapter.
System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.
Industrial 16 gauge steel construction with full welded, airtight seams.
Highly durable, rust preventative, almond-white powder coat finish.

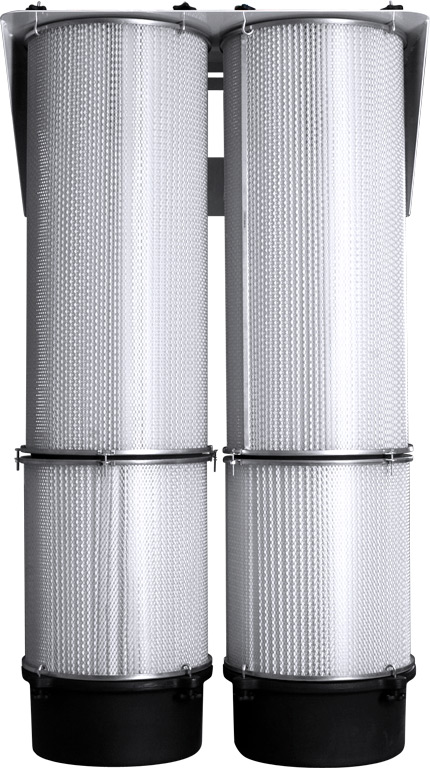

Dual Cartridge Filter Plenum Kit — See items #FCS183900 and #FCS182000 for replacement parts.

High Quality & Serviceable Filtration

Our industrial Direct Drive systems use spunbond polyester cartridge filters that are specifically designed for dust collection applications - providing unbeatable airflow and filtration performance - and are proudly made in the USA!

Filter Features:

We full stands by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.
Patented filter stacking system provides the same filtration area as a single, larger filter, but without the cumbersome weight and installation.
Patented internal acoustic foam silencers reduces noise caused by air vibrations by 1–2 dBa
Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maintenance.

Configurable Waste Containment Systems

Whether your system is connected to just a few saws, drum sanders, or industrial CNC equipment, Oneida Air Systems recognizes that the amount of waste produced by shops can vary significantly; We offer a wide variety of waste handling accessories to suit the needs of any work environment. All options are mounted to a highly durable, angle iron stand with a rust-preventative, powder coat finish.

System Options:

Air Lock Model: Ideal for shops with large amounts of waste production and provides the most cost effective and convenient disposal option. The dust collector can operate continuously while dust and debris is automatically fed to the container below, eliminating downtime for emptying. The customer must supply their own waste container for the system.
Dual Drum Model: Ideal for any shops with varying quantities of waste production. Waste is deposited evenly between both 55 gal. drums, doubling the time needed between emptying. The system must be powered down to empty either drum.
Single Drum Model: Ideal for smaller commercial shops with a strict height restriction or limited waste production. Expect to empty the single 55 gal. drum much more frequently if used with a large planer, drum sander, or CNC machine.

Specifications

More Information
Horsepower	7-1/2 hp
Motor Type	U.S. TEFC Motor
Motor Service Factor	1.15
Voltage	208-230V, 460V
Recommended Breaker Size	Call for Info
Amperage (Typical)	19-17.2A 8.6A @ 460V
Phase Option	Three-Phase (Pre-Wired)
Frequency	60Hz
Power Connector Type	4 Bare Wires
Impeller Type	Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy.
Impeller Size	16-1/2" Dia.
Real CFM Rating	2,514 Actual CFM at 1.5" S.P.
Free Fan CFM Rating	4,080 CFM
Maximum Suction	14" WC
Noise Level	83 dBA @ 10 ft
Cyclonic Separation Efficiency	Removes over 99% of fine wood dusts
Filter Type	Izumi Axtar Spunbond Media
Filtration Efficiency	99.9% @ 0.2-2.0 microns
Total Filtration Area	310 sq ft
Waste Capacity	Customizable
Remote Control Part #	For 208-230V: Item #AKR220003 N/A for 460V
Primary Build Materials	Cold Rolled Steel
Welding	Seam Welded
Static Resistance Rating	Conductive (Metal)
Color	White
Inlet Size	Round: 10" Dia. Square ID: 6-7/8"(W) x 13-13/16"(H) Square OD: 9-1/4"(W) x 16-3/8"(H)
Outlet Size	Round: 12" Dia. Square ID: 10"(W) x 7-1/2"(H)
Discharge Size	10" Dia.
Width	80.3"
Depth	39.2"
Height	Position 1: 151-13/16" Position 2: 137-13/16" Position 3: 127-13/16"
Contents	Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Square-to-Round Inlet Adapter, Filter Plenum, 4x Modular Cartridge Filters, Filter Efficiency Gauge, Angle Iron Stand, Hardware. Choice of Drum, Dual Drum, or Air Lock Valve.
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	2 Year Limited Warranty
Certifications	NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards.
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

Documents

FAQ

How often should I clean the dust collector's cartridge filter?

This can vary widely depending on how often your dust collector is used and what kind of dusts it's exposed to but you should typically clean it only once you've noticed a considerable drop in suction performance. In our experience this can be around once per year, but with heavy amounts of sanding it could be as often as once per month. A meter such as our Filter Efficiency Gauge can also be used to monitor pressure buildup and inform you when the filter needs to be cleaned.

What do I need to know about NFPA regulations?

Fire protection regulations are a complex and ever-changing set of rules that differ from facility to facility. However, all of Oneida Air Systems' dust collector are NFPA Compliance Ready and we provide best practices and guidance for assisting customers - read our NFPA Reference Guide for more information.

Is this product compatible with Quick-Clamp Duct?

Yes but you will first need to install a Machine Adapter into the dust collector's inlet. These adapters are smaller on the raw end than traditional ducting so that they can slip into the ports on systems and tools i.e. a 5" Quick-Clamp Duct Machine Adapter will measure ~4.9" O.D. on the raw end.

Can I vent my system outside?

If you have conditioned air in your shop (heated or cooled), then exhausting outside can be costly. If your building is small and well-sealed, you can interfere with flue exhausts as well. Close neighbors might object. If the Dust Collection system is run intermittently it is generally not a problem. Most buildings have enough leaks and crevices where the aforementioned volume of air does not cause problems. If you have a problem opening or closing an outside door when the DC is running, crack a window slightly. The rule of thumb is for every 500 CFM have at least 1 sq/ft of return air coming back into the shop. A lot of our customers blow exhaust air outside successfully.

What dust can be collected with your collector?

Oneida Air Systems' dust collectors are designed and tested for wood and wood dust. They can and have been used effectively for various other debris, including drywall dust, paper dust, agricultural dust, and metal chips. Please note that some common materials when cut, ground or processed by machinery may become highly toxic, flammable, or deflagrable and explosive. Customers must ensure that their particular use of a dust collection system is in accordance with national, state, local, NFPA, OSHA and all other applicable codes.

Can this be used for wet applications as well?

No. This system is designed for use collecting dry materials only.

How do I troubleshoot an air leak with my cyclone?

Even a small leak can significantly affect the overall separation performance of the cyclone. If you can't audibly pinpoint where the leak might be coming from, one of the simplest ways to check for air leaks is with a smoke test. Click "Read More" for further instructions and tips.

My filter gauge is reading 3 and I just installed it onto a new filter - Why is that?

The actual number doesn't really matter. It will be higher when you have more gates open, more airflow through the system and thus more back-pressure on the filter. Click "Read More" for full instructions on how to read your gauge.

What are the dimensions for this product?

General system dimensions are shown in the Specifications tab on each product page. More detailed information can be found in the product's Owner's Manual, located under the Documents tab.
