5hp High Vacuum Freestanding MERV-13 Cyclone Dust Collector

Skip to the beginning of the images gallery

XXK05

Rating:

87 % of 100

5hp High Vacuum Freestanding MERV-13 Cyclone Dust Collector

Only %1 left

As low as $5,495.00

High static air pressure system for CNC, sanding, and other fine dust applications. Includes modular stacking filter system with efficiency gauge to alert the operator for cleaning. Full-welded, steel cyclone separator captures and removes fine dust and bulk debris from the airstream to provide continuously high suction power and reduce filter maintenance downtime. Custom choice of voltage (230V, 460V) and waste disposal configuration (55 gal., 110 gal., Air Lock, etc.).

Overview

High Vacuum Pressure Dust Control for Industrial CNC Cutting Tools

Our 5HP High-Vacuum Dust Collector is one of our most powerful professional dust collection systems and is designed for small to medium sized shops running tools, such as CNC machines, where high static pressure is needed to adequately collect airborne dust. The unique configuration of our High-Vacuum systems make full use of the high-efficiency U.S. motor and cyclone separator to deliver maximum static pressure to multiple tools simultaneously.

This high pressure system is ideal for use with any type of CNC cutting tools as well as saws, jointers, lathes, shapers, planers, routers, sanders, and more!

Learn how the High Vacuum helped Kawneer North America improve their production workflows. Read the case study

Included Features & Components

Industrial 5HP U.S. Made Fan Blower Motor
Magnetic Starter with Overload Protector
Heavy-Gauge Seam Welded Steel Cyclone Separator
Modular Stacking Spunbond Cartridge Filters
Real-time Filter Efficiency Pressure Gauge
Drop-In Acoustic Foam Filter Silencers
Compact, Heavy-Duty Steel Angle Frame Stand
Choice of 55-Gallon, 110-Gallon, or Custom Sized Waste Bin with Rotary Air Lock
2 Year Limited Warranty
cETLus Certified and NFPA Compliance Ready

This system can be configured in a variety of ways to meet the needs of your shop. See the system options section below for further details.

"It's important to understand the dangers of the fine dust that wood shops create. Long term exposure can cause serious health problems and that's why I use and promote [Oneida Air Systems'] products. Their cyclone systems are excellent at filtering out the fine dust particles that are dangerous for woodworker's health. "
Andy Rawls, Fine Texas Woodcraft

5HP High Vacuum System Fan Performance Curve — OAS uses Actual CFM Ratings that reflect real-world airflow performance.

Continuously High Airflow Performance

Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That's why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior than the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.

High-efficiency fan blower motor - Made in USA
Industrial-grade brushless motor designed for continuous duty
1 and 3-phase power options available at 230/460V.
Delivers up to 2,150 Actual CFM at 2" S.P. - ample airflow for multiple woodworking tools at once.
Low pitch noise level provides ideal operator comfort
System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.
Heavy-gauge steel fan housing, full seam welded, built to last a lifetime.

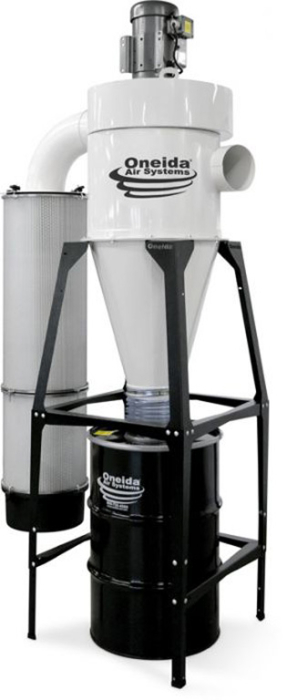

Closeup of High Vacuum cyclone — See item #SSK180000 for standalone cyclone model.

Ultra-High Efficiency Steel Cyclone Separator

Features Oneida Air Systems' unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.

Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
Large 8" dia. neutral-vane inlet for use with 8" to 6" ductwork layouts.
Industrial 16 gauge steel construction with full welded, airtight seams.
Durable, rust preventative, almond-white powder coat finish.

Stacking Spunbond Cartridge Filters — See items #FCS183900 and #FCS182000 for replacement parts.

High Quality & Serviceable Filtration

The High Vacuum system uses spunbond polyester cartridge filters that are specifically designed for dust collection applications - providing unbeatable airflow and filtration performance - and are proudly made in the USA!

OAS fully stands by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.
Patented filter stacking system provides the filtration area of a single larger filter, but without the cumbersome weight and install, and provides additional savings when replacements are required.
Patented internal acoustic foam reduces noise caused by vibrating outgoing air by 1–2 dBa
Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.
Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maintenance

Compact, Configurable Design

With its compact footprint, the 5HP High-Vacuum system can be configured to work easily into most ductwork setups. Choose from an array of waste containment options that best meet the needs of your shop and your work:

System Options:

Single Drum Model: Ideal for smaller commercial shops with a strict height restriction or limited floor space. Expect to empty the single 55 gal. drum much more frequently if used with a large planer, drum sander, or CNC machine.
Dual Drum Model: Ideal for any shops with varying quantities of waste production. Waste is deposited evenly between both 55 gal. drums, doubling the time needed between emptying. The system must be powered down to empty either drum.
Air Lock Model: Ideal for shops with large amounts of waste production and provides the most cost effective and convenient disposal option. The dust collector can operate continuously while dust and debris is automatically fed to the container below, eliminating downtime for emptying. The customer must supply their own waste container for the system.

Specifications

More Information
Horsepower	5 hp
Motor Type	U.S. TEFC Motor
Motor Service Factor	1ph: 1.00 \| 3ph: 1.15
Voltage	220-240V, 208-230V, 460V
Recommended Breaker Size	30A
Amperage (Typical)	1ph: 19.5A 3ph: 12-11.8A (5.9A @ 460V)
Frequency	60Hz
Power Connector Type	NEMA 6-20 or 4 Bare Wires
Power Cord Length	10 feet
Impeller Type	Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy.
Impeller Size	16-1/2" Dia.
Real CFM Rating	2,150 Actual CFM at 2" S.P.
Free Fan CFM Rating	3,225 CFM
Maximum Suction	16" WC
Noise Level	75-81 dBA @ 10 ft
Cyclonic Separation Efficiency	Removes over 99% of fine wood dusts
Filter Type	Izumi Axtar Spunbond Media
Filtration Efficiency	99.9% @ 0.2-2.0 microns
Total Filtration Area	155 sq ft
Waste Capacity	Customizable
Remote Control Part #	For 1ph/230V: Item #AXR220000 For 3ph/230V: Item #AKR220003 N/A for 460V
Primary Build Materials	Cold Rolled Steel
Welding	Seam Welded
Static Resistance Rating	Conductive (Metal)
Color	White
Inlet Size	8" Dia.
Outlet Size	Square ID: 10-1/32" (W) x 7-41/64" (H) with 1-1/4" Flange
Discharge Size	Choose model to see dimensions
Width	Choose model to see dimensions
Depth	Choose model to see dimensions
Height	Choose model to see dimensions
Height to Center of Inlet	Choose model to see dimensions
Contents	Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Filter Plenum, 2x Modular Cartridge Filters, Internal Silencer, Filter Efficiency Gauge, Angle Iron Stand, Hardware. Choice of Drum, Dual Drum, or Air Lock Valve.
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	2 Year Limited Warranty
Certifications	NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards.
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

Documents

FAQ

How often should I clean the dust collector's cartridge filter?

This can vary widely depending on how often your dust collector is used and what kind of dusts it's exposed to but you should typically clean it only once you've noticed a considerable drop in suction performance. In our experience this can be around once per year, but with heavy amounts of sanding it could be as often as once per month. A meter such as our Filter Efficiency Gauge can also be used to monitor pressure buildup and inform you when the filter needs to be cleaned.

your electrical specs are for a 3 hp motor 1 phase, The unit I am looking at is for a 5 hp motor 1 phase. Is the amperage the same if not what is the correct amperage?

For the 5HP 1ph High Vacuum Cyclone Dust Collector, the typical amperage is 19.5A.

What do I need to know about NFPA regulations?

Fire protection regulations are a complex and ever-changing set of rules that differ from facility to facility. However, all of Oneida Air Systems' dust collector are NFPA Compliance Ready and we provide best practices and guidance for assisting customers - read our NFPA Reference Guide for more information.

Is this product compatible with Quick-Clamp Duct?

Yes but you will first need to install a Machine Adapter into the dust collector's inlet. These adapters are smaller on the raw end than traditional ducting so that they can slip into the ports on systems and tools i.e. a 5" Quick-Clamp Duct Machine Adapter will measure ~4.9" O.D. on the raw end.

Can I vent my system outside?

If you have conditioned air in your shop (heated or cooled), then exhausting outside can be costly. If your building is small and well-sealed, you can interfere with flue exhausts as well. Close neighbors might object. If the Dust Collection system is run intermittently it is generally not a problem. Most buildings have enough leaks and crevices where the aforementioned volume of air does not cause problems. If you have a problem opening or closing an outside door when the DC is running, crack a window slightly. The rule of thumb is for every 500 CFM have at least 1 sq/ft of return air coming back into the shop. A lot of our customers blow exhaust air outside successfully.

What dust can be collected with your collector?

Oneida Air Systems' dust collectors are designed and tested for wood and wood dust. They can and have been used effectively for various other debris, including drywall dust, paper dust, agricultural dust, and metal chips. Please note that some common materials when cut, ground or processed by machinery may become highly toxic, flammable, or deflagrable and explosive. Customers must ensure that their particular use of a dust collection system is in accordance with national, state, local, NFPA, OSHA and all other applicable codes.

Can this be used for wet applications as well?

No. This system is designed for use collecting dry materials only.

How do I troubleshoot an air leak with my cyclone?

Even a small leak can significantly affect the overall separation performance of the cyclone. If you can't audibly pinpoint where the leak might be coming from, one of the simplest ways to check for air leaks is with a smoke test. Click "Read More" for further instructions and tips.

My filter gauge is reading 3 and I just installed it onto a new filter - Why is that?

The actual number doesn't really matter. It will be higher when you have more gates open, more airflow through the system and thus more back-pressure on the filter. Click "Read More" for full instructions on how to read your gauge.

What are the dimensions for this product?

General system dimensions are shown in the Specifications tab on each product page. More detailed information can be found in the product's Owner's Manual, located under the Documents tab.
